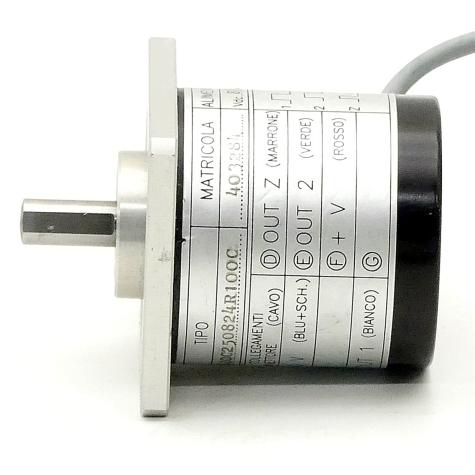

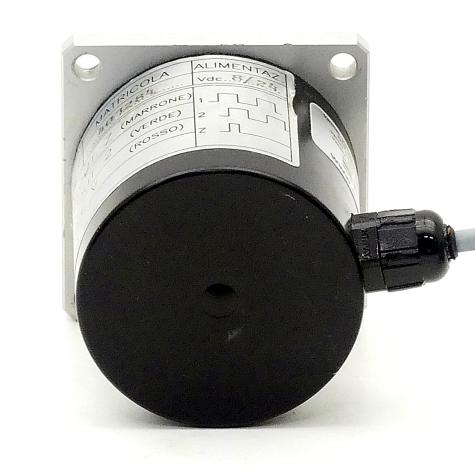

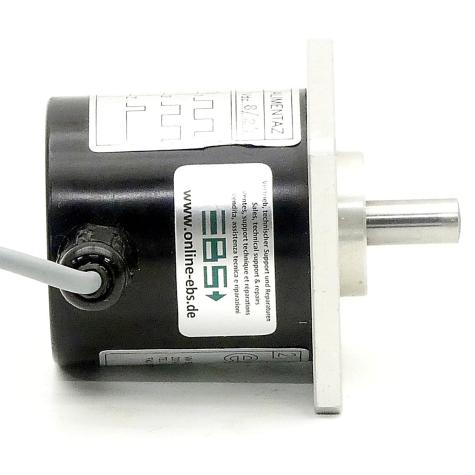

Elap Incremental Rotary Encoder

Article no.: E620C250824R10OC
12 months guarantee
Incremental Rotary Encoder
Incremental Rotary Encoder
Incremental Rotary Encoder
Incremental Rotary Encoder
Incremental Rotary Encoder
Incremental Rotary Encoder
Incremental Rotary Encoder
All images are original images.
from
105,00 € net*
In stock: 2 piece
Article no.: E620C250824R10OC
Shipping: Express delivery possible
Guarantee in months: 12
Stock: 2
* Prices excl. VAT plus shipping costs

Used item. New Items and other variants available upon request.

Specifications

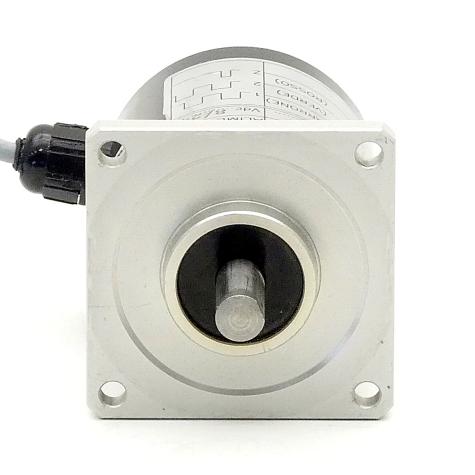

Aluminum rectangular flange 63.5 mm x 63.5 mm
Centering collar Ø: 31.75 mm
ABS plastic housing Ø 58 mm
Shaft Ø: 10 mm with flat
Pulses per revolution (dashes): 250
Supply voltage: 8/24 VDC

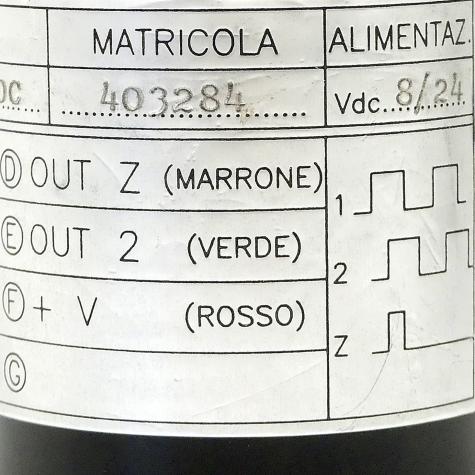

Output signals: Open-collector NPN (2 channels)
Max. output signal frequency: 100/200 kHz
Cable (radial exit): 3 m
Protection class: IP65
Accessories: None

Specification

Manufacturer
Elap
Guarantee in months
12
Weight
0.364 kg
Stock location
Rosenfeld
Stock ground
