RELEX AG Three-phase water-cooled motor HEFIE3 WK160/4-215T

Article no.: 8013527
12 months guarantee

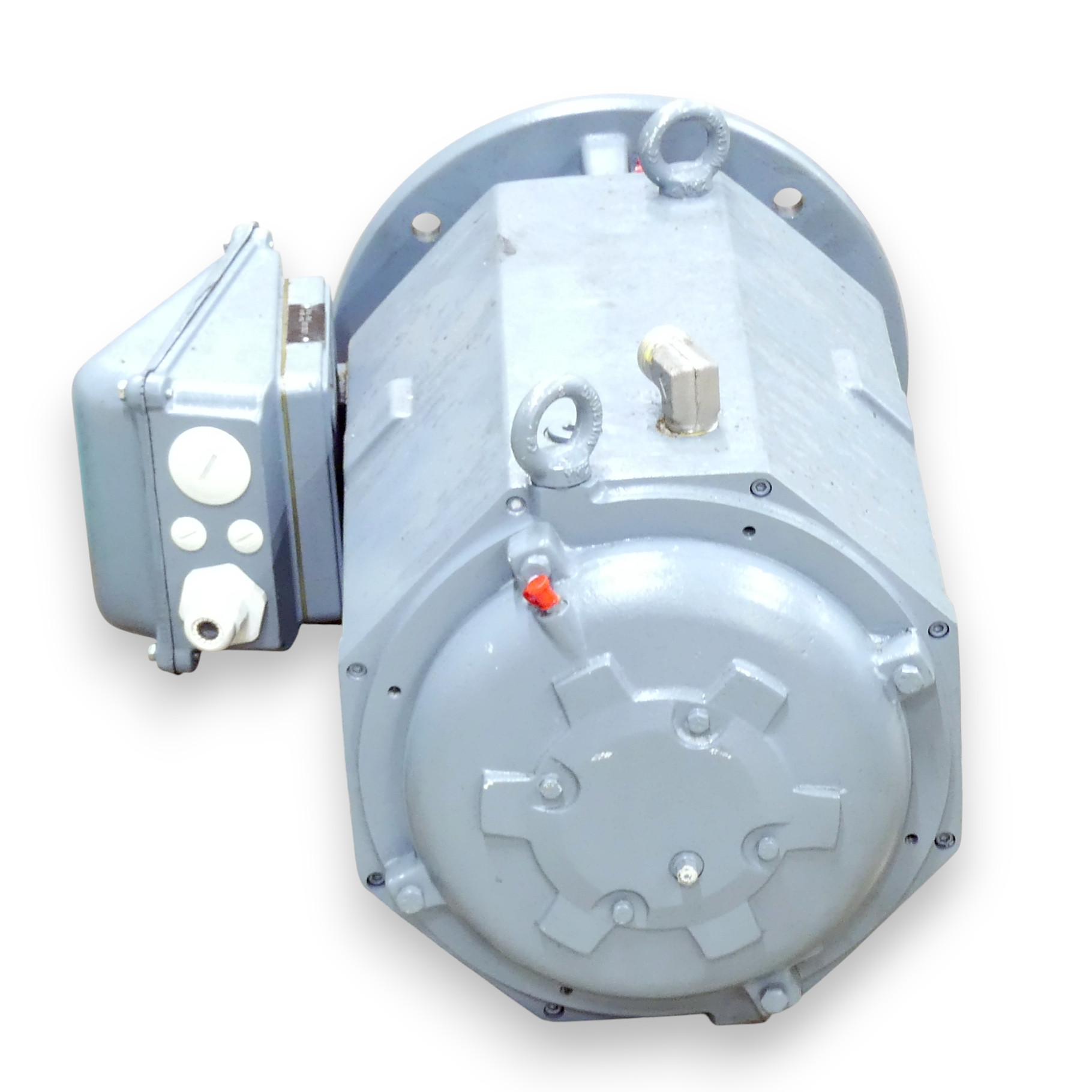

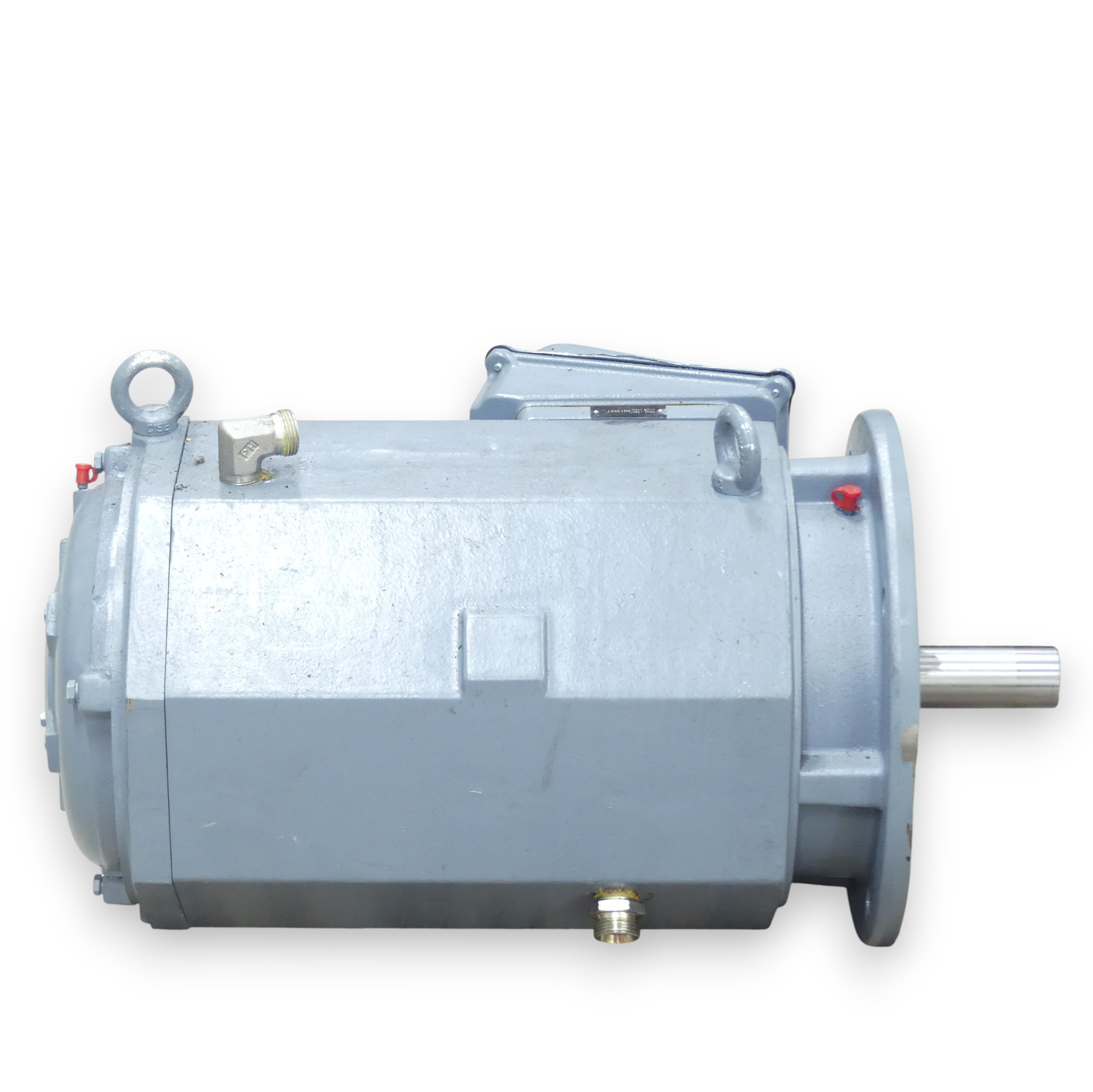

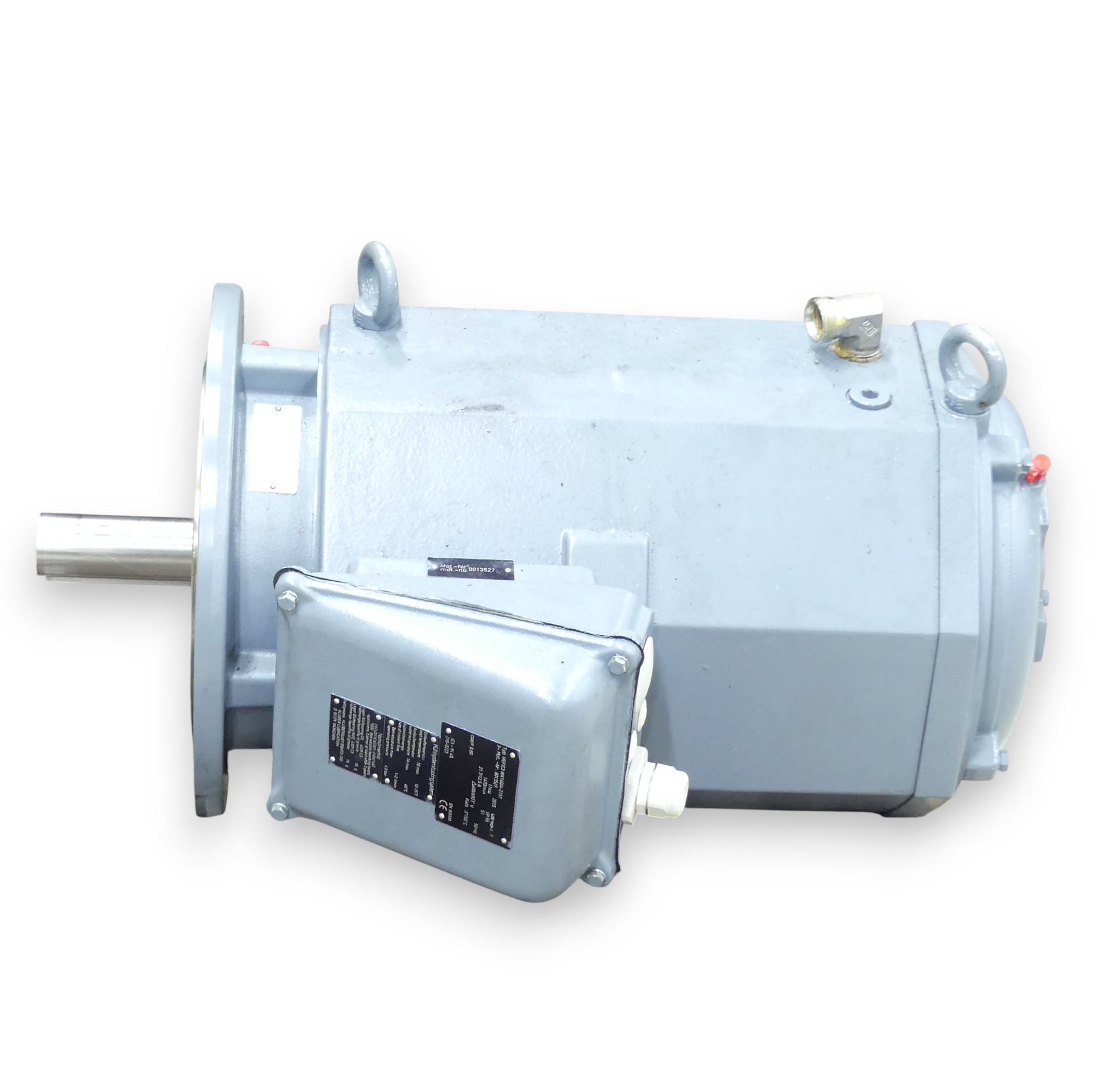

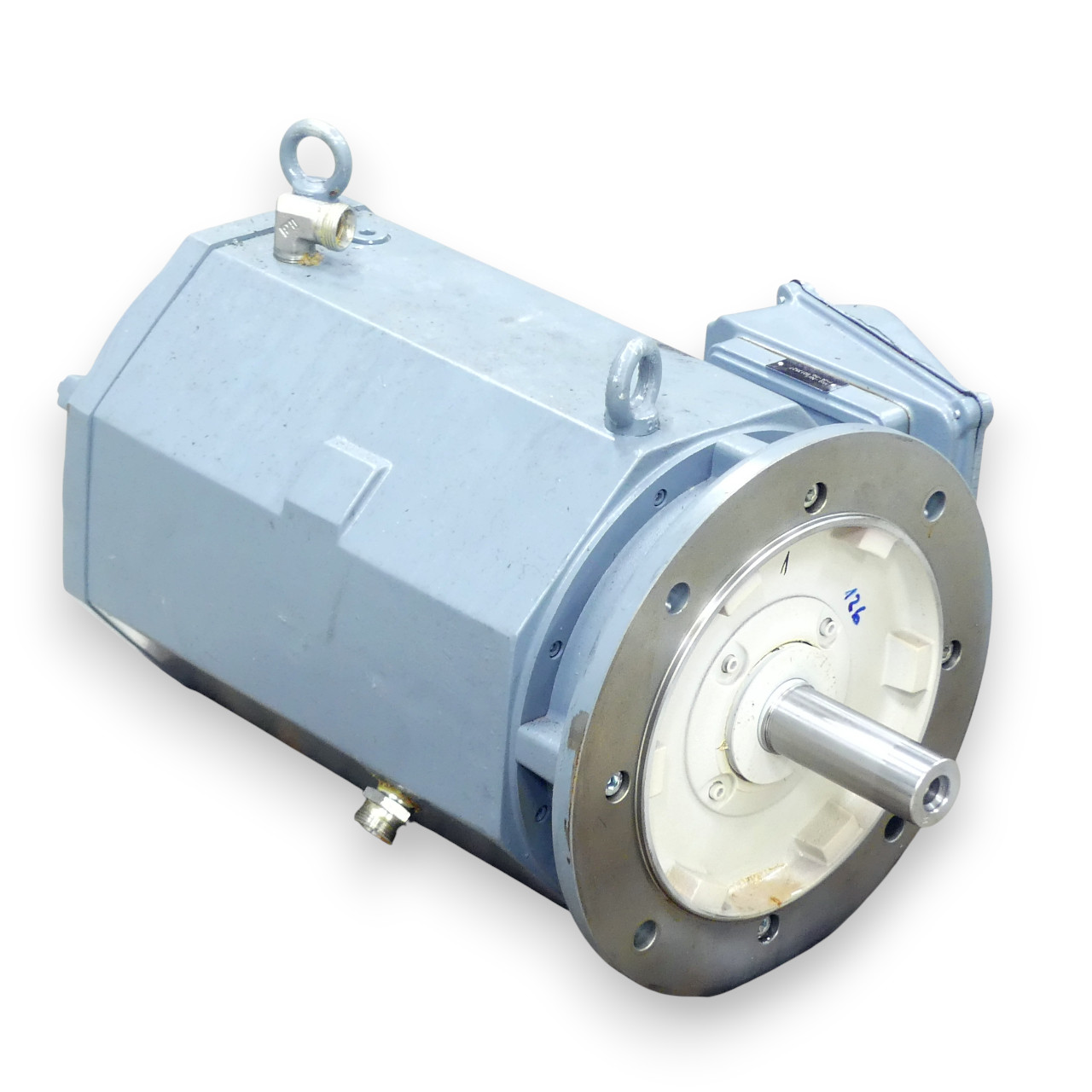

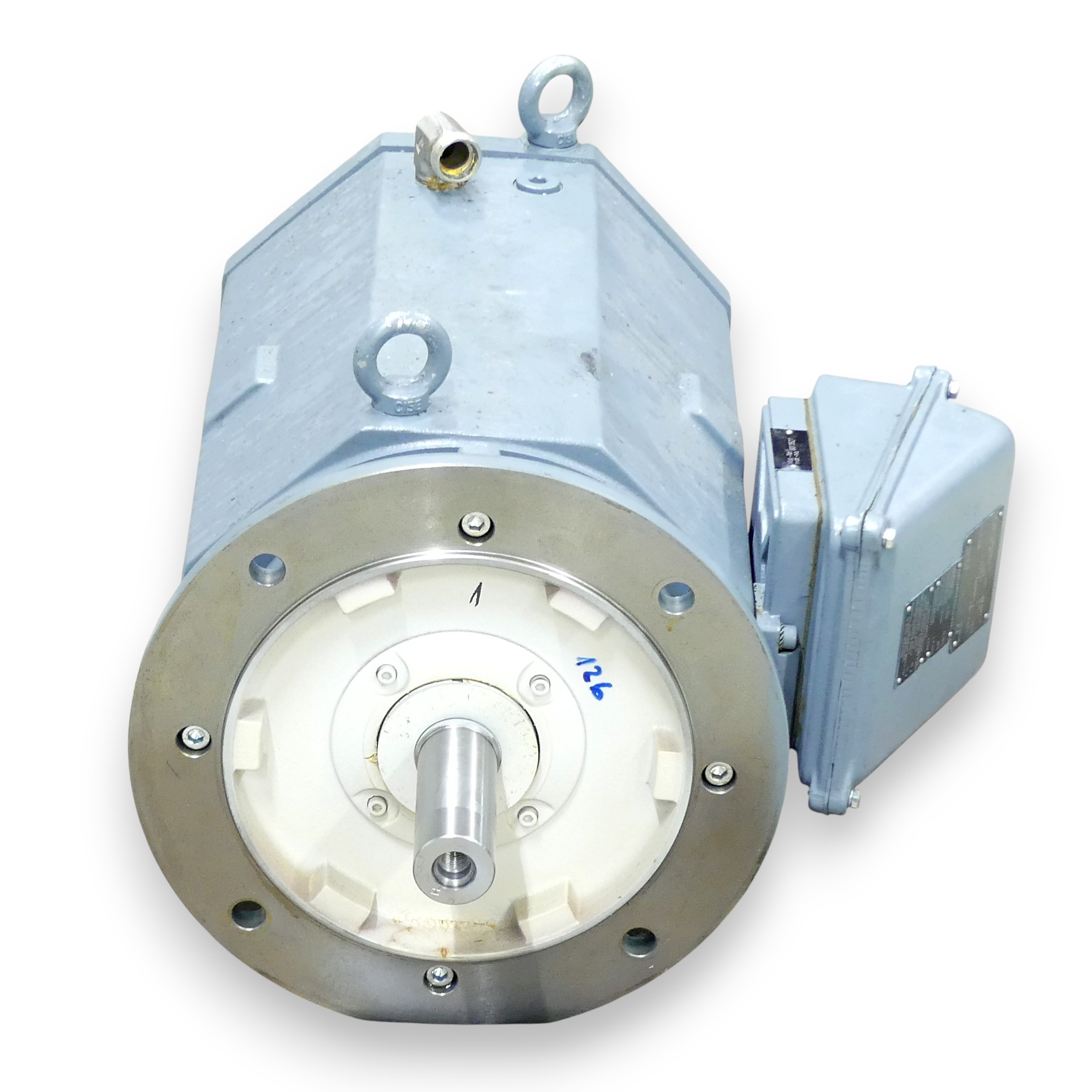

Three-phase water-cooled motor HEFIE3 WK160/4-215T
Three-phase water-cooled motor HEFIE3 WK160/4-215T
Three-phase water-cooled motor HEFIE3 WK160/4-215T
Three-phase water-cooled motor HEFIE3 WK160/4-215T
Three-phase water-cooled motor HEFIE3 WK160/4-215T
Three-phase water-cooled motor HEFIE3 WK160/4-215T
Three-phase water-cooled motor HEFIE3 WK160/4-215T
All images are original images.
2.088,00 € net*
In stock: 2 piece
? Display cart in PayPal
Article no.: 8013527
Product condition: Used from old stock
Shipping: Standard shipping
Guarantee in months: 12
Stock: 2
* Prices excl. VAT plus shipping costs

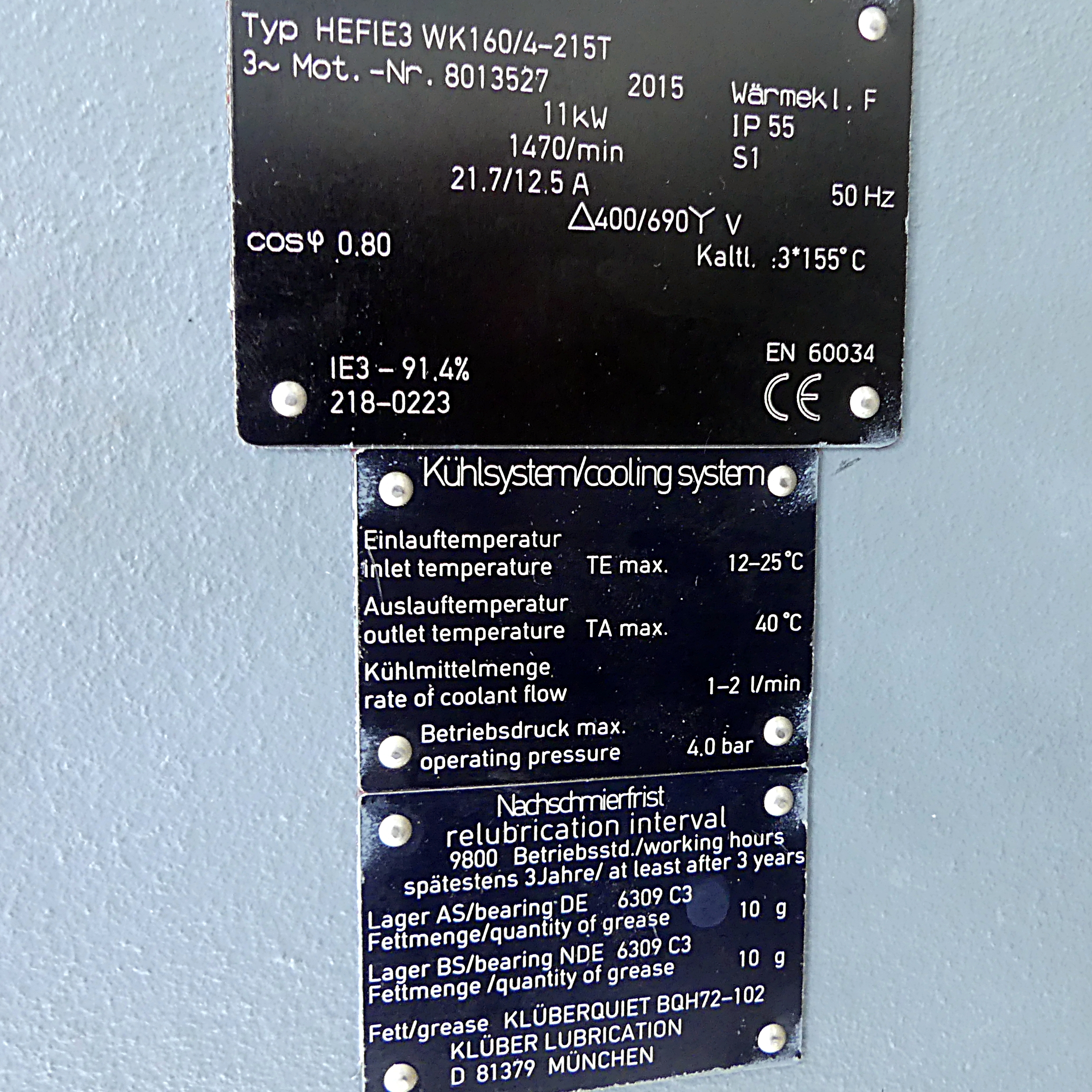

Efficiency (IE3): 91.4 %
Cooling System:

Inlet temperature (max. TE): 12–25°C

Outlet temperature (max. TA): 40°C

Coolant flow rate (flow rate): 1–2 l/min

Max. operating pressure: 4.0 bar

Relubrication interval:

Operating hours: 9800 h or at least every 3 years

Bearing AS (DE): 6309 C3 – 10g grease

Bearing BS (NDE): 6309 C3 – 10g grease

Grease: KLÜBERQUIET BQH72-102

Specification

Product condition
Used from old stock
Manufacturer
RELAX AG
Guarantee in months
12
Pressure (pmax)
4,0 bar
Frequency
50 Hz
Rotation Speed
1470 rpm
Power
11 kW
Voltage
400 / 690 V
Current
21,7 / 12,5 A
Protection Class (IP)
IP 55
Shaft Diameter
42 mm
Shaft End
Wth feather key
Feather Key
12 mm x 100 mm
Flange Diameter
250 mm
Diameter Of Pitch Circle
4 x 300 mm
Temperature
3*155°C
Weight
184.1 kg
